ENGINEERING AND SITE DEVELOPMENT PLANS FOR THE GEORGE C MARSHALL SPACE FLIGHT CENTER

ENGINEERING AND SITE DEVELOPMENT PLANS FOR THE GEORGE C MARSHALL SPACE FLIGHT CENTER

Archive of original hand-drawn engineering and site plans for the George C. Marshall Space Flight Center in Huntsville, Alabama, 1962-1968

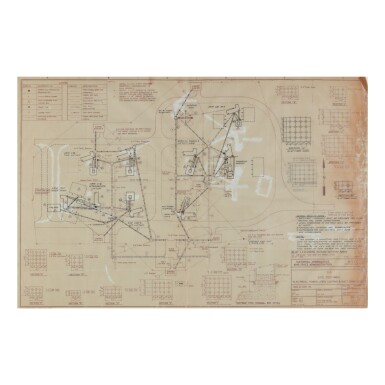

Together thirteen hand drawn engineering and site plans on two different types of vellum (22 by 34 inches, 17 by 22 inches, and 12 by 18 inches), some heightened in color, consisting of: 1). Suggested Arrangement for Ventilation of M.G. Set. 8927359. Drawing date 25 April, 1963. On graph paper. 2). Sheet 1 (of 1) Industrial Water System. Construction Drawing ...Loop Connection at Static Test Tower. 8927241. Drawing Date 1 February, 1962. 3). Sounds Suppression Test Facility. Drainage Trench & 1 1/2 " Water Line Plan & Section. 8927361. Drawing Date 29 April, 1963. 4). Sheet 1 (of 1) High Pressure Pneumatic Facility Building 4372. Addition of Protective Mesh. 8927362. Drawing date 30 April, 1963. 5). Sheet 1 (of 1) GN₂ Battery @4598. GN₂ Piping Header. 90M04027. Drawing date 8 August, 1968. 6). Sheet 1 (of 1) Acoustic Test Facility. Cell 116. 12 Inch Water Dump-Line. 90M04003. Drawing date 9 July 1968. 7). Sheet 1 (of 1) C.T.L. Cell 115. High Pressure GH₂ Spool Piece. 90M04007. Drawing date 17 July 1968. 8 & 9). Sheets 1A & 1B (of 15) Saturn V G.S.E. Test Facility. General Location Plan. 90M00917. Drawing dates 11 May, 1963. 10). C5 G.S.E Test Area. Electrical Power, Area Lighting.... 89273575. Drawing date 24 October, 1962. 11-13). Test Division. Site Development Plan. North Shop Support Area. 8927363. Drawing dates 17 July, 1963.

AN ARCHIVE OF HIGHLY DETAILED ENGINEERING AND SITE DEVELOPMENT PLANS FOR THE GEORGE C. MARSHALL SPACE FLIGHT CENTER IN HUNSTVILLE, ALABAMA.
